Overview

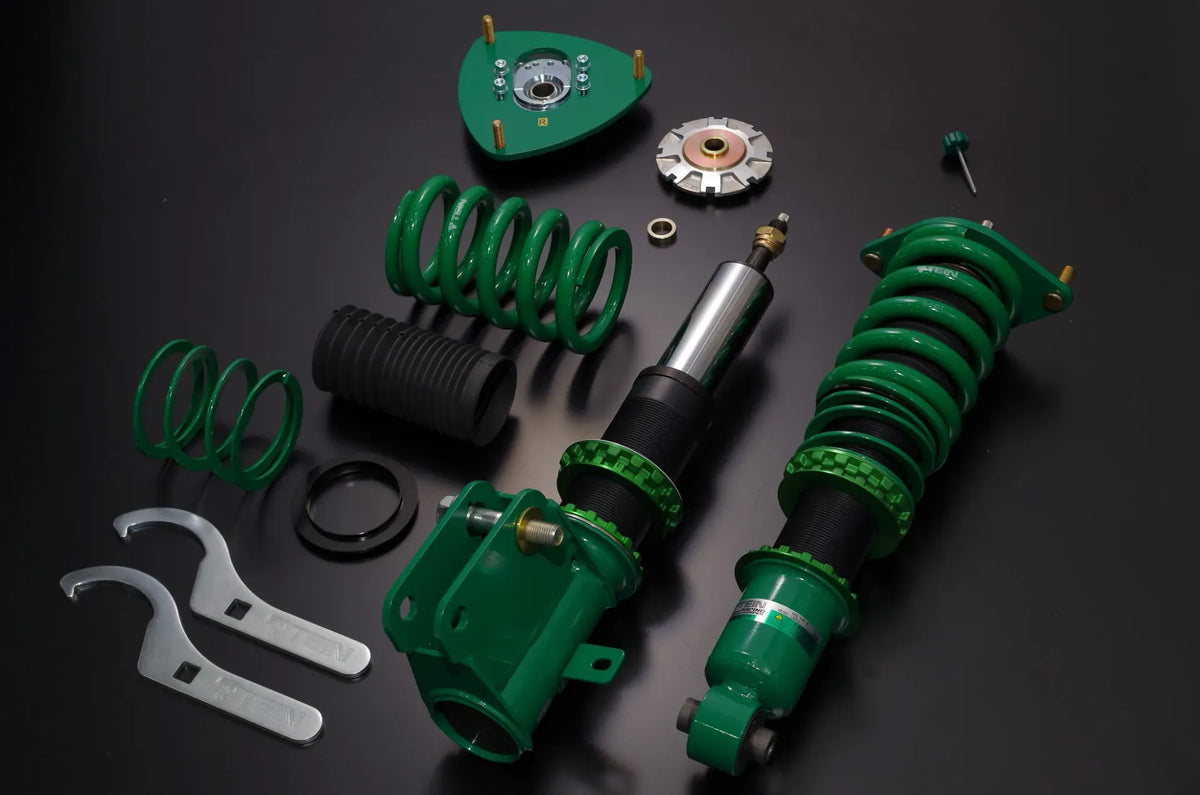

A customisable monotube racing coilover: 16-step damping adjustment,
full-length ride-height adjustment, high-rate springs and pillow-ball mounts, with spring rates and lengths that can be specified to suit the car and the driver.
EDFC compatible.
Prevent nose dives while breaking.
Helper springs are used on both front and rear to secure the sufficient rebound strokes and to allow for the better ground contact and traction performance.
Use of caster and camber adjustable pillow ball upper mounts on front provides wider alignment adjustment range.
Supplied complete with springs
Camber adjustment washers with different offsets are available (sold separately).
From the positive angle set with the included washers, replace the washers with optional washers SPS12-R16100-25 to set the angle further positive, and with SPS12-R16100-05 to set to negative direction.
From the negative angle set with the included washers, replace the washers with optional washers with optional washers SPS12-R16100-05 to set the angle further negative, and with SPS12-R16100-25 to set to positive direction (both sold separately).
2 eccentric washers per vehicle are required.
Us&uk special order only : springs must be selected when ordering.
Price includes springs.
RR: interior needs to be cut or removed, to avoid interference.
Camber adjustment washers with different offsets are available (sold separately).
From the positive angle set with the included washers, replace the washers with optional washers SPS12-R16100-25 to set the angle further positive, and with SPS12-R16100-05 to set to negative direction.
From the negative angle set with the included washers, replace the washers with optional washers SPS12-R16100-05 to set the angle further negative, and with SPS12-R16100-25 to set to positive direction (both sold separately).
2 eccentric washers per vehicle are required.
Us&uk special order only : springs must be selected when ordering.
Price includes springs.
Listed for 3 vehicle models.
See the vehicle fitment list for every application, spring rate and ride-height figure.
Specifications
| Setting characteristics | Performance is improved to maintain the handling at high-speed and to avoid putting the vehicle off-balance; e.g. |
|---|---|
| Damping force adjustable | 16 steps |
| Full-length ride-height adjustment | height changes without altering stroke or pre-load |
| EDFC compatible | add a TEIN EDFC5 or EDFC Active Pro controller for in-car damping control |
| Front springs | selected from 12,14,16K. |
| Rear springs | selected from 14,16,18K. |
| Front springs | selected from 12,14,16K. |
| Rear springs | selected from 14,16,18K. |
Fitment
Manufacturer part number: VSSB0-K1LS1
Exact applications and corresponding fitting notes from the TEIN UK catalogue. Match chassis, engine, grade and market to your vehicle before ordering.
| Vehicle model | Years | Engine (cc) | Drive | Chassis | Grade | TEIN market | Application notes | Kit notes |
|---|---|---|---|---|---|---|---|---|
| SUBARU WRX | 2015-2021 | 2000 | 4WD | VAG | USA | RR: INTERIOR NEEDS TO BE CUT OR REMOVED, TO AVOID INTERFERENCE. CAMBER ADJUSTMENT WASHERS WITH DIFFERENT OFFSETS ARE AVAILABLE (SOLD SEPARATELY). FROM THE POSITIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS SPS12-R16100-25 TO SET THE ANGLE FURTHER POSITIVE, AND WITH SPS12-R16100-05 TO SET TO NEGATIVE DIRECTION. FROM THE NEGATIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS WITH OPTIONAL WASHERS SPS12-R16100-05 TO SET THE ANGLE FURTHER NEGATIVE, AND WITH SPS12-R16100-25 TO SET TO POSITIVE DIRECTION (BOTH SOLD SEPARATELY). | 2 ECCENTRIC WASHERS PER VEHICLE ARE REQUIRED. FRONT SPRINGS : SELECTED FROM 12,14,16K. REAR SPRINGS : SELECTED FROM 14,16,18K. US&UK SPECIAL ORDER ONLY : SPRINGS MUST BE SELECTED WHEN ORDERING. PRICE INCLUDES SPRINGS. | |
| SUBARU WRX STI | 2014.08-2020.04 | 2000 | 4WD | VAB | STI | JPN | RR: INTERIOR NEEDS TO BE CUT OR REMOVED, TO AVOID INTERFERENCE. CAMBER ADJUSTMENT WASHERS WITH DIFFERENT OFFSETS ARE AVAILABLE (SOLD SEPARATELY). FROM THE POSITIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS SPS12-R16100-25 TO SET THE ANGLE FURTHER POSITIVE, AND WITH SPS12-R16100-05 TO SET TO NEGATIVE DIRECTION. FROM THE NEGATIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS SPS12-R16100-05 TO SET THE ANGLE FURTHER NEGATIVE, AND WITH SPS12-R16100-25 TO SET TO POSITIVE DIRECTION (BOTH SOLD SEPARATELY). | 2 ECCENTRIC WASHERS PER VEHICLE ARE REQUIRED. FRONT SPRINGS : SELECTED FROM 12,14,16K. REAR SPRINGS : SELECTED FROM 14,16,18K. US&UK SPECIAL ORDER ONLY : SPRINGS MUST BE SELECTED WHEN ORDERING. PRICE INCLUDES SPRINGS. |
| SUBARU WRX STI | 2014.08-2020.04 | 2000 | 4WD | VAB | STI TYPE-S | JPN | RR: INTERIOR NEEDS TO BE CUT OR REMOVED, TO AVOID INTERFERENCE. CAMBER ADJUSTMENT WASHERS WITH DIFFERENT OFFSETS ARE AVAILABLE (SOLD SEPARATELY). FROM THE POSITIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS SPS12-R16100-25 TO SET THE ANGLE FURTHER POSITIVE, AND WITH SPS12-R16100-05 TO SET TO NEGATIVE DIRECTION. FROM THE NEGATIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS SPS12-R16100-05 TO SET THE ANGLE FURTHER NEGATIVE, AND WITH SPS12-R16100-25 TO SET TO POSITIVE DIRECTION (BOTH SOLD SEPARATELY). | 2 ECCENTRIC WASHERS PER VEHICLE ARE REQUIRED. FRONT SPRINGS : SELECTED FROM 12,14,16K. REAR SPRINGS : SELECTED FROM 14,16,18K. US&UK SPECIAL ORDER ONLY : SPRINGS MUST BE SELECTED WHEN ORDERING. PRICE INCLUDES SPRINGS. |
| SUBARU WRX STI | 2014-2020 | 2500 | 4WD | VAF | STI | GBR | RR: INTERIOR NEEDS TO BE CUT OR REMOVED, TO AVOID INTERFERENCE. CAMBER ADJUSTMENT WASHERS WITH DIFFERENT OFFSETS ARE AVAILABLE (SOLD SEPARATELY). FROM THE POSITIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS SPS12-R16100-25 TO SET THE ANGLE FURTHER POSITIVE, AND WITH SPS12-R16100-05 TO SET TO NEGATIVE DIRECTION. FROM THE NEGATIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS WITH OPTIONAL WASHERS SPS12-R16100-05 TO SET THE ANGLE FURTHER NEGATIVE, AND WITH SPS12-R16100-25 TO SET TO POSITIVE DIRECTION (BOTH SOLD SEPARATELY). | 2 ECCENTRIC WASHERS PER VEHICLE ARE REQUIRED. FRONT SPRINGS : SELECTED FROM 12,14,16K. REAR SPRINGS : SELECTED FROM 14,16,18K. US&UK SPECIAL ORDER ONLY : SPRINGS MUST BE SELECTED WHEN ORDERING. PRICE INCLUDES SPRINGS. |
| SUBARU WRX STI | 2015-2021 | 2500 | 4WD | VAF | STI | USA | RR: INTERIOR NEEDS TO BE CUT OR REMOVED, TO AVOID INTERFERENCE. CAMBER ADJUSTMENT WASHERS WITH DIFFERENT OFFSETS ARE AVAILABLE (SOLD SEPARATELY). FROM THE POSITIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS SPS12-R16100-25 TO SET THE ANGLE FURTHER POSITIVE, AND WITH SPS12-R16100-05 TO SET TO NEGATIVE DIRECTION. FROM THE NEGATIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS SPS12-R16100-05 TO SET THE ANGLE FURTHER NEGATIVE, AND WITH SPS12-R16100-25 TO SET TO POSITIVE DIRECTION (BOTH SOLD SEPARATELY). | 2 ECCENTRIC WASHERS PER VEHICLE ARE REQUIRED. FRONT SPRINGS : SELECTED FROM 12,14,16K. REAR SPRINGS : SELECTED FROM 14,16,18K. US&UK SPECIAL ORDER ONLY : SPRINGS MUST BE SELECTED WHEN ORDERING. PRICE INCLUDES SPRINGS. |
| SUBARU WRX S4 | 2014.08-2021.10 | 2000 | 4WD | VAG | 2.0GT EYESIGHT, 2.0GT-S EYESIGHT | JPN | RR: INTERIOR NEEDS TO BE CUT OR REMOVED, TO AVOID INTERFERENCE. CAMBER ADJUSTMENT WASHERS WITH DIFFERENT OFFSETS ARE AVAILABLE (SOLD SEPARATELY). FROM THE POSITIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS SPS12-R16100-25 TO SET THE ANGLE FURTHER POSITIVE, AND WITH SPS12-R16100-05 TO SET TO NEGATIVE DIRECTION. FROM THE NEGATIVE ANGLE SET WITH THE INCLUDED WASHERS, REPLACE THE WASHERS WITH OPTIONAL WASHERS WITH OPTIONAL WASHERS SPS12-R16100-05 TO SET THE ANGLE FURTHER NEGATIVE, AND WITH SPS12-R16100-25 TO SET TO POSITIVE DIRECTION (BOTH SOLD SEPARATELY). | 2 ECCENTRIC WASHERS PER VEHICLE ARE REQUIRED. FRONT SPRINGS : SELECTED FROM 12,14,16K. REAR SPRINGS : SELECTED FROM 14,16,18K. US&UK SPECIAL ORDER ONLY : SPRINGS MUST BE SELECTED WHEN ORDERING. PRICE INCLUDES SPRINGS. |
Source: TEIN UK official fitment catalogue (catalogue export captured 2026-10-20).
Specifications
- Brand: TEIN
- Product type: Coilover Kit
- Manufacturer part number: VSSB0-K1LS1
Please verify fitment before sale.
